Being part of KELONIK GROUP, KCS division has a wide professional expertise in cinema sound systems, backed by fifteen years of experience and a large customer base worldwide. We are globally represented by our international KCS Distributor Network in the five continents.

Through continuous research and new product development for years, KCS has fulfilled customer demands in terms of optimised features, high performances, variety of models for any market needs, and efficient service.

With the advent of the new 3D digital projection formats, audio systems in movie theatres need to evolve so that the audience can be immersed in the sound field and enjoy a true 3D sound experience.

KCS is highly implicated in the development of such sound systems aimed for Dolby Atmos, Auro 11.1 or similar.

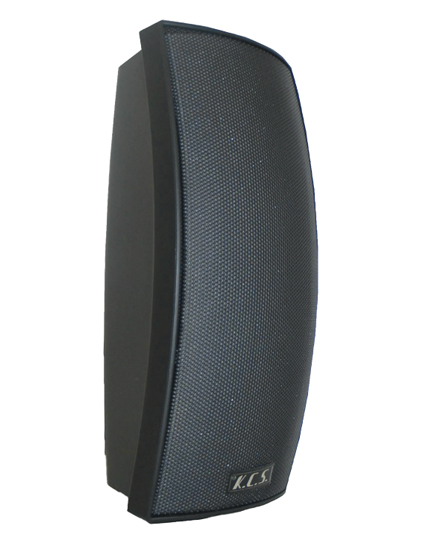

SR-7

Surround channel cinema sound system for background music in Halls

SR-7 is a high-fidelity background sound speaker which has been especially designed for the cinema lobby. It is a compact design enclosed in a high-pressure polypropylene injection cabinet. For decoration purposes, SR-7 is available in white or black colour and it is designed to operate both in vertical and horizontal position. Fastenings are provided in its back panel for direct wall mounting or fitting via the adjustable bracket included..

Specifications :

  • Frequency Range (-10 dB): 65 Hz- 22 kHz.
  • Nominal Impedance: 8 Ωhms.
  • Power Capacity Continuous Pink Noise: 100W.
  • Continuous Program: 200W.
  • Sensitivity 1W/1m: 89 dB S.P.L.
  • Crossover Frequency: 4000 Hz.
  • Horizontal Beamwidth: 80º.
  • Vertical Beamwidth: 70º.
  • Dimensions (H x W x D): 34 x 15 x 15 cm.
  • Net Weight: 2.6 kg.

Download Datasheet
